Is the Salto XS4 Mini suitable for high-traffic doors?

The XS4 Mini is mechanically rated to ANSI Grade 1 or 2, so durability is not the concern. The constraint is duty and power: it is an indoor, compact escutcheon rated around 40,000 openings per battery set. That is ideal for guest-room, extended-stay, and unit doors, but on a high-traffic main entrance running hundreds of cycles a day the battery service becomes frequent and the full-size XS4 One is the better fit.

Can the XS4 Mini be used outdoors?

No. XS4 Mini is built for indoor applications. For weather-exposed doors use an outdoor-rated lock, and for gates, cages, and equipment use the Neoxx padlock. They all run the same Salto credential, so one guest or resident key still covers every opening.

How long do the batteries last in an XS4 Mini?

Expect roughly 24 to 36 months at moderate traffic, around 40,000 openings per set. High-cycle doors will shorten that, which is one reason we recommend XS4 One for the busiest openings.

Does XS4 Mini meet hotel brand standards?

Most brand standards accept XS4 Mini for value-tier rooms, and it carries the same mobile-key compliance as XS4 One. We confirm your specific brand program during scoping so the spec is right before anything ships.

Salto · Compact, lower-cost hotel lock for extended-stay and value brands

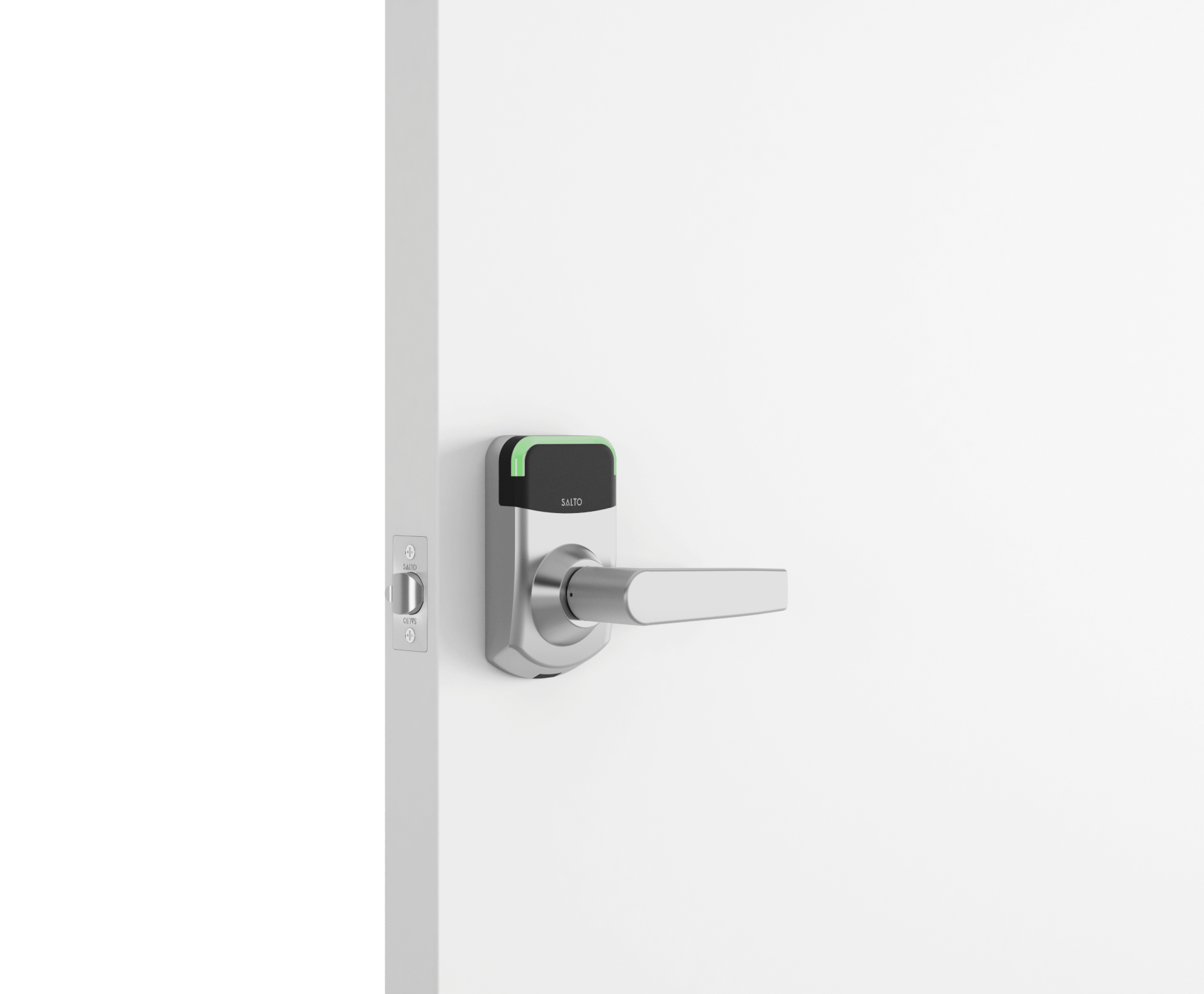

Salto XS4 Mini.

Current lineCompactMobile credentials

XS4 Mini is the smaller form-factor sibling to XS4 One. It runs the same credential stack (BLE, NFC, RFID Mifare DESFire, PIN with the module), supports the same PMS platforms, and meets the same brand mobile-key requirements, all in a more compact escutcheon and at a lower per-door price tier. We deploy XS4 Mini across extended-stay properties (Residence Inn, Homewood Suites, Hyatt House), value-tier branded select-service, and multifamily units where the smaller profile suits the door design. If you are choosing between XS4 One and XS4 Mini and brand standards are silent, Mini is usually the right call.

Specs

Form factorCompact mortise + slim escutcheon

Door prepANSI standard mortise (compact footprint)

CredentialsBLE, NFC, RFID (Mifare DESFire), PIN (with module)

Apple WalletSupported (2024 firmware)

PlatformSalto Space (SVN offline + BLUEnet real-time); KS cloud optional

PowerBattery (4x AA, 24-36 month life typical)

Brand standardsMost brand standards accept Mini for value-tier rooms

Integrations

XS4 Mini connects to hotel PMS, guest-journey, and check-in platforms through Salto’s integration ecosystem, which is extensive and updated frequently. Rather than freeze a partial list, we point you to Salto’s own directory for the current set.

Browse Salto’s integration directory →

Decision aid

Not sure if XS4 Mini is the right line for your property? The Salto Product Selector compares this against the rest of the Salto portfolio based on your property type and priorities.

Where we install XS4 Mini

HospitalityDefault for extended-stay and value-tier branded properties. Often paired with XS4 One on the premium floors of mixed-tier hotels.
MultifamilyCommon in apartment and condo unit doors where the smaller profile suits the existing door design.
CommercialOffice tenant units and small commercial properties.

XS4 Mini models we configure

XS4 Mini is a family, not a single SKU. These are the specific models and variants we spec and install, each on its own page with its configuration and use cases.

XS4 Mini ANSIStandard ANSI mortise XS4 Mini configurationView model →XS4 Mini ANSI TubularTubular-bolt XS4 Mini configuration for non-mortise prepView model →

Datasheets & documents

Manufacturer documentation for XS4 Mini, straight from Salto.

SALTO XS4 Mini datasheet (PDF)

Where XS4 Mini fits, and where it doesn’t

EnvironmentIndoor

Form factorSlim escutcheon

Battery4x AA alkaline, ~40,000 openings per set 24-36 months at moderate traffic; expect more frequent battery service in high-cycle doors.

Durability gradeANSI A156.2 Grade 1 or 2 cylindrical-latch capable (mechanically rated); electronic side per A156.25.

Ideal trafficModerate traffic Indoor-only, compact escutcheon. The lock is durable, but a heavy main-entrance door turns the battery cycle into frequent service. For those doors, XS4 One is the more robust choice.

Best for

Extended-stay properties (Residence Inn, Homewood Suites, Hyatt House)
Value-tier branded select-service rooms
Multifamily unit doors with compact handle profiles
Premium-tier rooms in mixed-tier hotels, paired with XS4 One on the main floors

Not ideal for

High-traffic main entrances and 24/7 high-cycle openings (step up to XS4 One)
Outdoor or weather-exposed doors (Mini is indoor-only)
Exterior gates, cages, and equipment points (use Neoxx)

Sourced from SALTO XS4 Mini ANSI datasheet, ANSI/BHMA A156 grade levels. Reviewed 2026-06-23 by RevKey.

Things to think about

Great for moderate traffic, not high-cycle main doors

The XS4 Mini is mechanically rated to ANSI Grade 1 or 2, so durability is not the issue. The limit is duty and power: it is an indoor, compact escutcheon rated around 40,000 openings per battery set. On a guest-room or unit door that is fine for years. On a high-traffic main entrance running hundreds of cycles a day, battery service gets frequent and the full-size XS4 One is the better fit.

Indoor only

XS4 Mini is built for indoor applications. For weather-exposed doors use an outdoor-rated lock, and for gates, cages, or equipment points use the Neoxx padlock. All of them run the same Salto credential, so a single guest or resident key still covers everything.

When Mini is the right call over XS4 One

If brand standards are silent and the door is a normal guest-room or unit opening, Mini gives you the same credential stack and PMS integration as XS4 One in a smaller footprint at a lower per-door price. Step up to XS4 One when the door is high-traffic, when the brand specifies it, or when you want one SKU across the whole property.

Sources: SALTO XS4 Mini datasheet (PDF), SALTO XS4 Mini product page. Reviewed 2026-06-23 by RevKey.

Next step: get a scope for XS4 Mini

Send us your property details and we will come back with a real scope for a XS4 Mini install, including phasing, brand-standard compliance, and a dated timeline.

XS4 Mini: frequently asked

Is the Salto XS4 Mini suitable for high-traffic doors?
The XS4 Mini is mechanically rated to ANSI Grade 1 or 2, so durability is not the concern. The constraint is duty and power: it is an indoor, compact escutcheon rated around 40,000 openings per battery set. That is ideal for guest-room, extended-stay, and unit doors, but on a high-traffic main entrance running hundreds of cycles a day the battery service becomes frequent and the full-size XS4 One is the better fit.
Can the XS4 Mini be used outdoors?
No. XS4 Mini is built for indoor applications. For weather-exposed doors use an outdoor-rated lock, and for gates, cages, and equipment use the Neoxx padlock. They all run the same Salto credential, so one guest or resident key still covers every opening.
How long do the batteries last in an XS4 Mini?
Expect roughly 24 to 36 months at moderate traffic, around 40,000 openings per set. High-cycle doors will shorten that, which is one reason we recommend XS4 One for the busiest openings.
Does XS4 Mini meet hotel brand standards?
Most brand standards accept XS4 Mini for value-tier rooms, and it carries the same mobile-key compliance as XS4 One. We confirm your specific brand program during scoping so the spec is right before anything ships.
